Squeezer

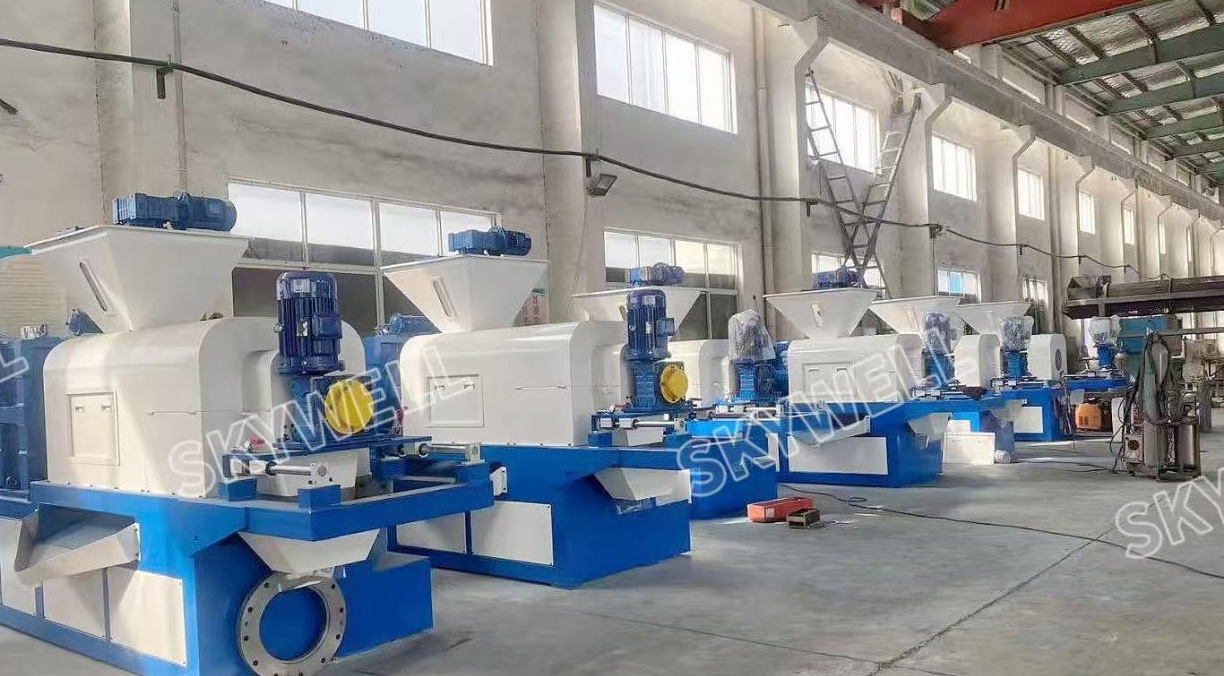

Plastic Squeezer Machine, which is a new designed drying machines instead of traditional dewatering machines and drying system for washed recycled PE/ LDPE /LLDPE /HDPE films ,bags, parts of PP woven bag and ect.
This machine could dehydrate most water from washed film efficiently.The corn parts is the screw surrounded by the screen mesh which will pushes the material forward under pressing& squeezing power, the waters will be filter out fast.
Product Parameters
| Model | SG250 | SG300 | SG320 |
|---|---|---|---|
| Capacity | 200-300kg/h | 400-600kg/h | 700-1000kg/h |
| Screw diameter | Φ250mm | Φ300mm | Φ320mm |
| Main Motor Power | 75kw | 110kw | 160kw |
| Heating power | 9kw | 10kw | 12kw |
| Cutting blade | 4pcs | 4pcs | 4pcs |
| Cutting power | 4kw | 5.5kw | 7.5kw |
| Blower power | 4kw | 5.5kw | 7.5kw |
| FInal moisture content | 3~8% | 3~8% | 3~8% |
| Cutting particle size | Approx 12mm | Approx 12mm | Approx 12mm |
| Cylone volume | 1000L | 1000L | 1000L |
| Pipe connection and silo material | SUS304 | SUS304 | SUS304 |
Product Details

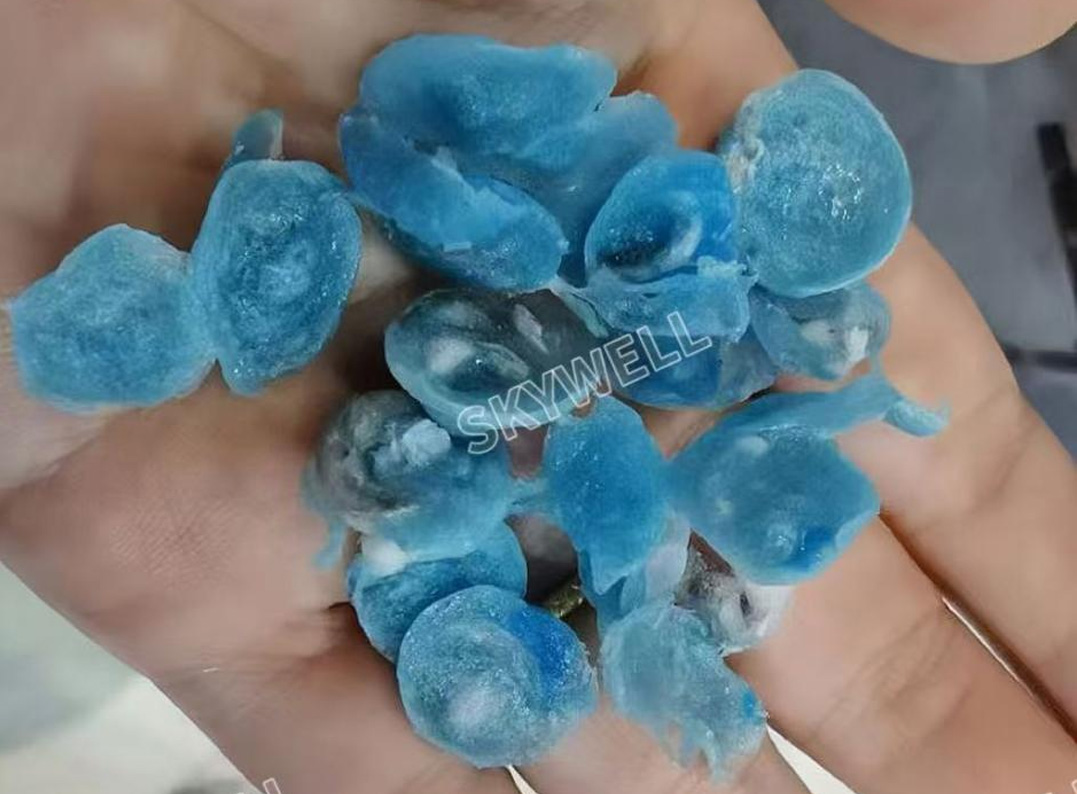

The self-friction power and auxiliary electric heating system will turn the PE film material at semi-plasticized condition and extruded out from the mould and been cut by speed rotor blades. The cut pieces will be cooling by air and transmit to cyclone silo. The final products will be regular high density granulas/flakes which increase output a lot on pelletizing process.
Features
- Latest technology. Insteadof Dehydrator (Dewatering) machine.
- Application: wet LDPE LLDPE HDPE PE film, bags, PP woven bags.
- Low power consumption.
- Final moisture percent: 3~8% (up to different material type and working situtaion)
Welcome to contact with us for detailed specifications, machine running video and quotation
