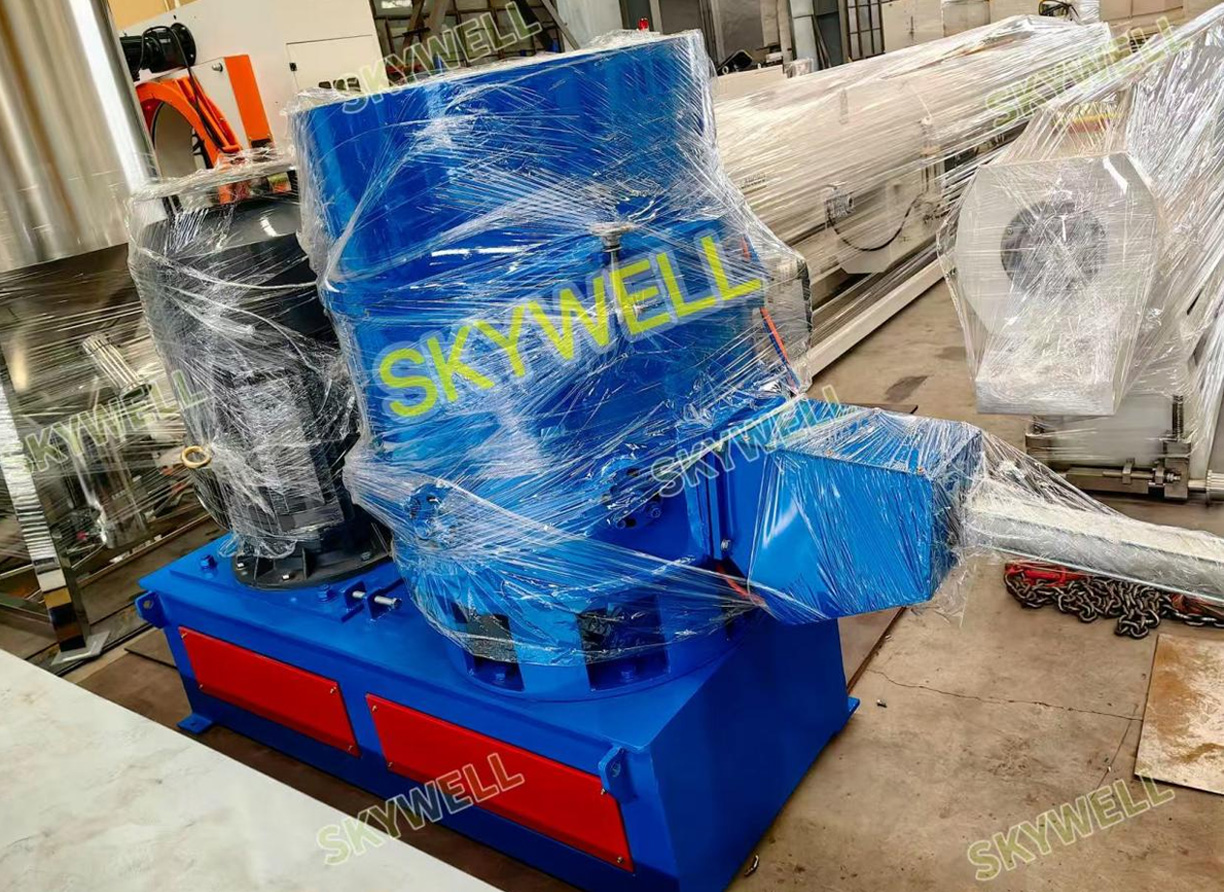

Agglomerator
The SKL serial Plastic Recycling Agglomerator is used to granulate the thermal plastic films, PET fibers, whose thickness is ≤ 2 mm into small granules & pellets directly.
The Plastic Agglomerator Machine main function: Crushing and Compacting thin and flex material to more heavy bubble granulas which could be feed to pelletizing feeder with more higher capacity.
Machine parameters:
| Model | Volume(L) | Effective Volume(L) |
Mainshaft Speed(rpm) |
Capacity(kg/hr) | Heating Method | Discharge Method |
|---|---|---|---|---|---|---|
| SKL-100 | 100 | 75 | 800 | 80-100 | By self friction | Manually or Pneumatic |
| SKL-200 | 200 | 150 | 800 | 150-200 | ||
| SKL-300 | 300 | 225 | 800 | 250-300 | ||
| SKL-500 | 500 | 375 | 750 | 300-400 | ||
| SKL-800 | 800 | 600 | 750 | 500-600 | ||
| Material of inner barrel: SUS 304 | ||||||
Fitting Material
- PE, PP, LDPE, HDPE, LLDPE soft thermoplastic film, bag, silk, ribbon, sheet, pipe, waste and leftovers.
- Degradable plastic film and leftovers
- Chemical fiber (polyester fiber, acrylic fiber, polypropylene)
Final Product : Semi-plasticized Plastic Granule
Welcome to contact with us for detailed specifications, machine running video and quotation
