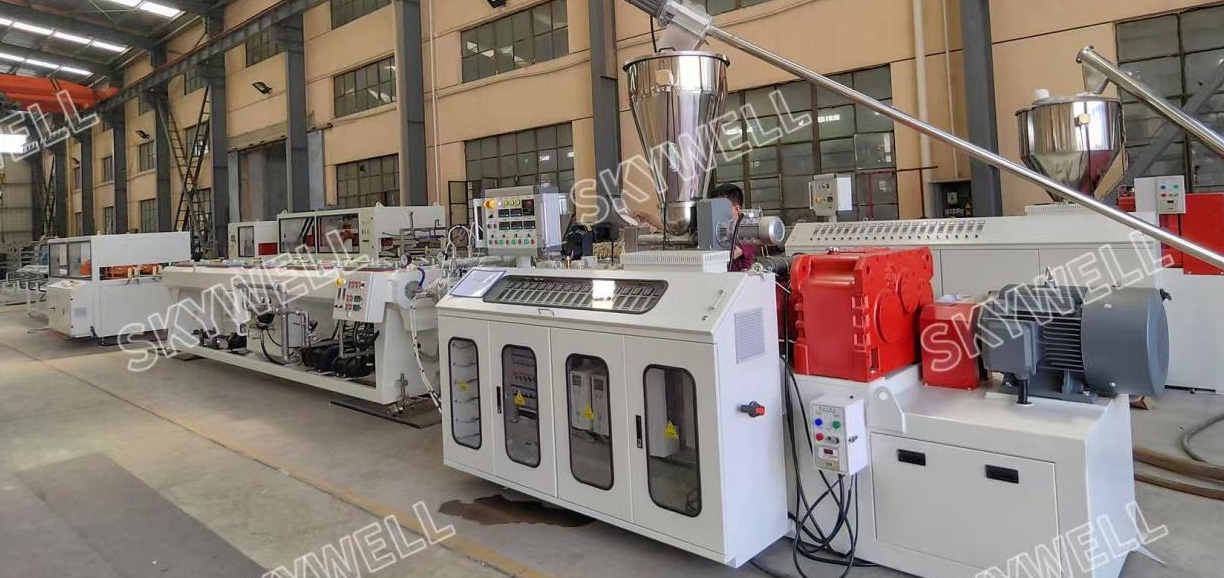

PVC Pipe Extrusion Line
PVC (Polyvinylchlorid) pipe is a synthetic material formed by extruding polyvinyl chloride resin with stabilizers, lubricants, etc. through a hot pressing process. As the second largest synthetic material used globally, it is mainly divided into three types: PVC-U pipe, PVC-M pipe and PVC-O pipe. The melting temperature range is 185~205℃. The hard PVC pipe accounts for approximately two-thirds, featuring corrosion resistance and low price, it is suitable for drainage, water supply and chemical fluid transportation.
Process Flow
Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical （Parallel）Twin Screw
Extruder → Mould → Vacuum Calibiation Tank → Haul Off Machine → Plantery Pipe Cutting Machine → Pipe Stacker （Or Pipe Socketing Machine）
For PVC pipe, our machine can produce the pipe dia. Range from 16-1200mm.
Product Parameters
| Model | Pipe Range | Extruder (Conical Twin Screw ) |
Main Power (KW) |
Max Output (KG/H) |
|---|---|---|---|---|
| 63 | 16-63 | 65/132 | 37 | 250 |
| 160 | 50-160 | 65/132 | 37 | 250 |
| 250 | 50-160 | 80/156 | 55 | 400 |
| 315 | 90-315 | 80/156 | 55 | 400 |
| 450 | 160-400 | 92/188 | 110 | 800 |
| 630 | 315-630 | 92/188 | 110 | 800 |
| Model | Pipe Range | Extruder (Parallel Twin Screw ) |
Main Power (KW) |
Max Output (KG/H) |
| 160 | 50-160 | 75/36 | 45 | 450 |
| 250 | 50-250 | 90/36 | 75 | 800 |
| 315 | 90-315 | 90/36 | 75 | 800 |
| 450 | 90-315 | 90/36 | 75 | 800 |
| 450 | 160-400 | 90/36 | 75 | 800 |
| 630 | 315-630 | 114/36 | 110 | 1200 |
| 800 | 400-800 | 114/36 | 110 | 1200 |
| 1200 | 630-1200 | 135/36 | 160 | 1600 |
Product Details

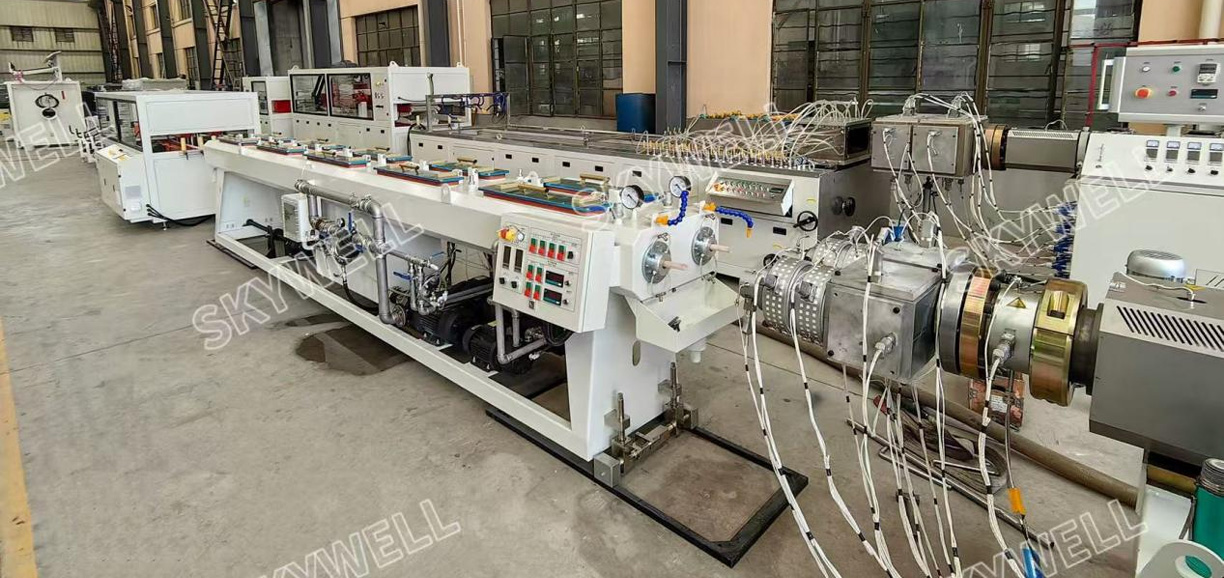

For small dia. Pvc pipe extrusion line normally use double outlet
machine.The below is the mold for double outlet type.
Calibration Tank for doublet extrusion.
Haul off Machine for doublet extrusion.
Cutting Unit for double outlet extrusion.
PVC Pipe Extrusion Machine normally use conical twin screw extruder,
while customers who focus on perfect product quality prefer to choose
the Parallel Twin Screw Extruder.
The screw of the twin-screw extruder has the same diameter throughout
its entire length and is arranged in parallel.
Parallel twin-screw extruder offers a more uniform mixing, suitable for
precise compounding and blending operations. The materials are evenly
dispersed and the plasticizing and mixing effects are excellent.
Welcome to contact with us for detailed specifications, machine running video and quotation
