Knife Sharpening Machine also can say blade sharpening machine, belong to the auxiliary machine for plastic washing crusher machine, the fuction of knife sharpening machine is to make the blade from crusher machine be Sharp. After using the crusher machine for a peroid, the rotary blade and fixed blade for will become blunt, at this point, a sharpening machine should be used to sharpen the blades of the crusher machine for continued use. This knife sharpening machine can effectively enhance the production efficiency and service life of the crusher machine.
The SKL serial Plastic Recycling Agglomerator is used to granulate the thermal plastic films, PET fibers, whose thickness is ≤ 2 mm into small granules & pellets directly. The Plastic Agglomerator Machine main function: Crushing and Compacting thin and flex material to more heavy bubble granulas which could be feed to pelletizing feeder with more higher capacity.
Since the density of EPS foam board is very light, generally 10-45kg/m3. There are two problems, one is that the transportation cost greatly increased, another is the feeding efficiency be lower during pelletizing, the capacity also will not be achieved. The EPS compressor machine from SKYWELL solves this problem, it can reduce the size of the EPS material, the compressing ratio can reach 1:30-1:50.The finished products is the EPS blocks, the density can reach 350kg/ m3.
Plastic Squeezer Machine, which is a new designed drying machines instead of traditional dewatering machines and drying system for washed recycled PE/ LDPE /LLDPE /HDPE films ,bags, parts of PP woven bag and ect.This machine could dehydrate most water from washed film efficiently.The corn parts is the screw surrounded by the screen mesh which will pushes the material forward under pressing& squeezing power, the waters will be filter out fast.

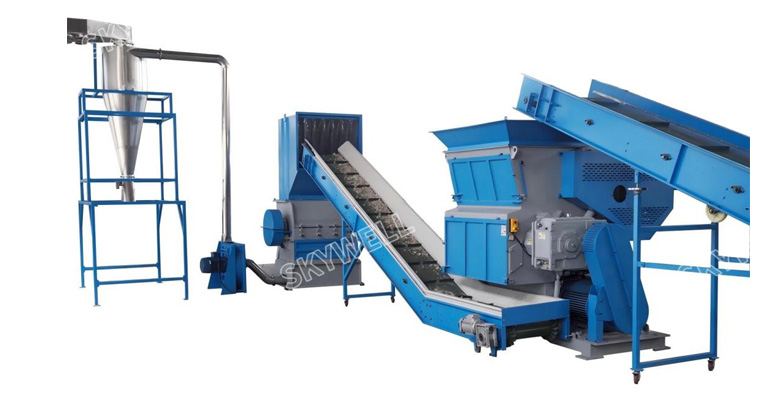

About shredder machine, we have single shaft, double shaft and heavy duty type, suitable for different kind of plastic raw material.
SS series Plastic Shredder Machine is a kind of heavy duty size reduction machines which are capable for shredding a large range of materials such as hard plastics, woods,textiles,tires,cardboard,packed fibers,film in rolls ect. These models machines are specially designed for varies thick material like plastic blocks,lumps,polymer pipes, household plastics ect.There are two types of rotor blade designs for different applications. A type (Shaft-knife holder intergrated type) for soft material and the B type( blade seat type )for block material.External bearing seat. The bearing seat was designed outside the machine body, and the main shaft and the machine body are sealed by a sealing ring, which effectively prevents the shredded materials from entering the bearing to prolonging the life of the bearing.
DSS series Plastic Double Rotor Shredder takes advantage of both single shaft shredder and double shaft shredder. First of all, instead of using stacked cutters(disk knives), this shredder adopts two rotors from one shaft shredder. The 2 rigid and heavy rotors bring twice the torque and crushing ability for you. Secondly, the two rotors contra-rotate like a double shaft shredder. Once objects fall into the shredding chamber, the two rotors tear down the objects. As double rotor shredder equips with screens, you can get uniform particle size. In a harsh environment, the shredding machines can maintain good stability and reliability. 2 types of shredder rotor can be selected according to material characteristics.

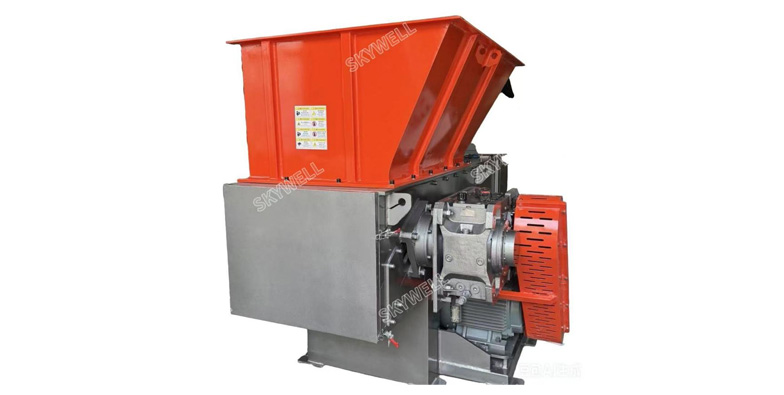

SKS/SKG series Single Shaft shredder has a large diameter profiled rotor made of solid steel, operating at a speed of 74rpm. The concave ground,aggressive 4-way rotating knives are mounted in the grooves of the profiled rotor with special knife holders. This enables a reduction of the cutting gap between the counter knives and the rotor which guarantees a high flow rate,low power consumption and maximum output of shredded material.The hydraulically operated ram feeds the material automatically in the rotor's cutting chamber by load-related controls. The hydraulic system is equipped with high-pressure valves and volumetric flow controls which can be set according to the requirements of the input material.There are two types of rotor blade designs for different applications. A type (Shaft-knife holder intergrated type) for soft material and the B type( blade seat type )for block material.

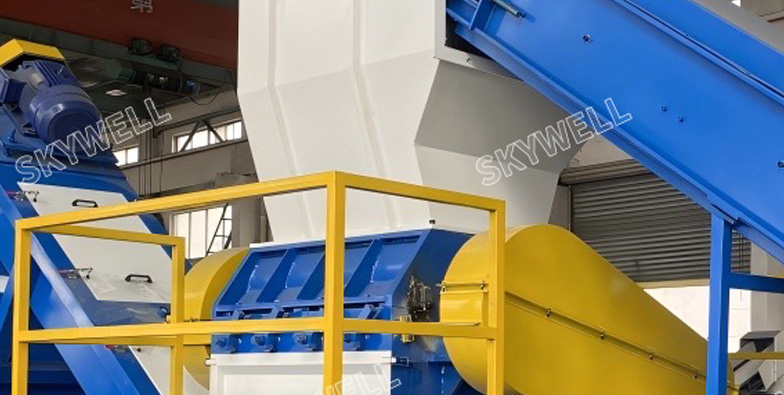

The SKS series Plastic Crushing Machine cuts plastic film/ plastic rigid lumps and other hollow thin walled plastics into small, uniform pieces, or more popularly known as flakes. It has a centrally hinged two-piece cutting chamber with a robust welded steel construction, with the upper and lower sections of the housing meeting horizontally. Reversible stator knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re- sharpening and adjustment of the stator knives. There is a hinged screen cradle and hinged door for easy screen access.

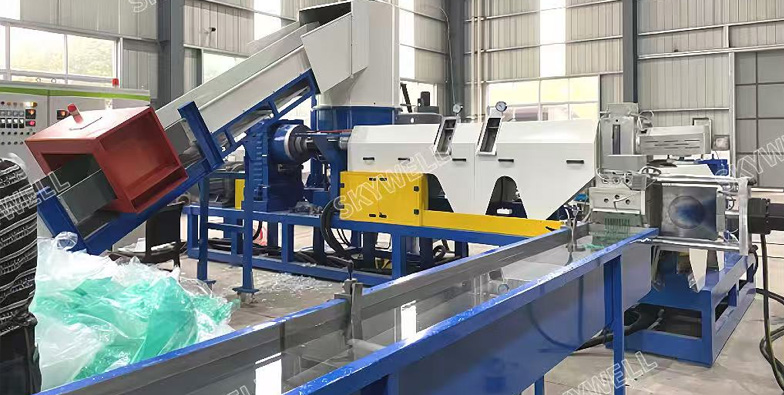

Plastic PP/PE/PET/EPS recycling granulating machine is special equipment for the plastic film/bags recycling granulating, it equipped with compactor which pre-compact the plastic raw material into smaller granules, then easily feed into screw barrel of extruder. With high efficiency and improve production capacity, machine with vacuum exhausting system on extruder , which can fully vent the moisture in the material and hence the final granule quality will be very perfect. At the end of screw barrel, it equipped with double station fast speed hydraulic non -stop screen changer , which can efficiently filter out the dirty in the plastic melt. The pelletizing adopts water cooling pelletizing which is easier to operate, the final shape and appearance of granule is also good.
