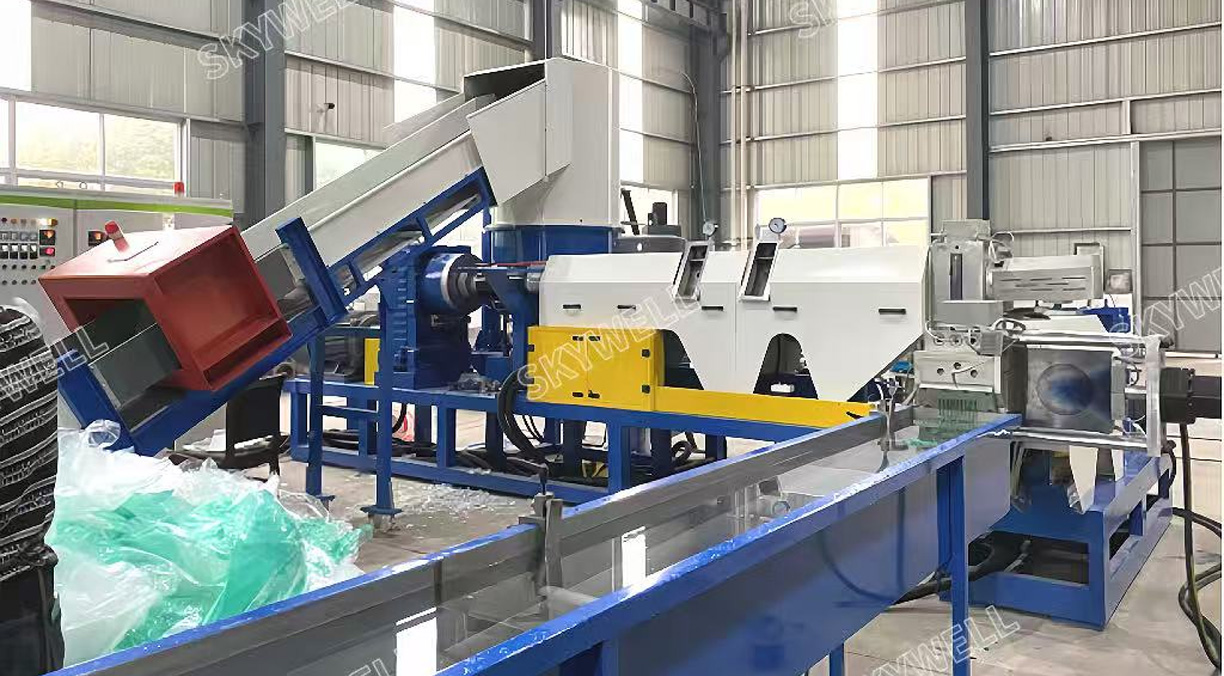

Plastic PP/PE/PET/EPS Pelletizing Machine
Plastic PP/PE/PET/EPS recycling granulating machine is special equipment for the plastic film/bags recycling granulating, it equipped with compactor which pre-compact the plastic raw material into smaller granules, then easily feed into screw barrel of extruder.
With high efficiency and improve production capacity, machine with vacuum exhausting system on extruder , which can fully vent the moisture in the material and hence the final granule quality will be very perfect.

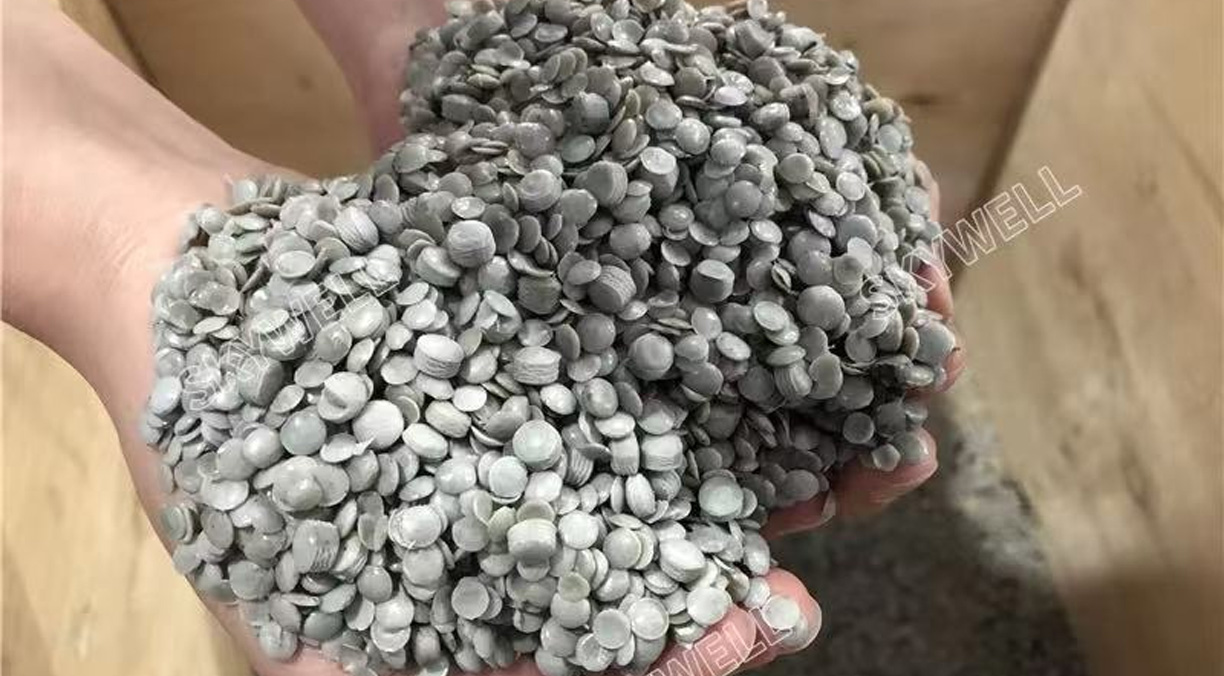

At the end of screw barrel, it equipped with double station fast speed hydraulic non -stop screen changer , which can efficiently filter out the dirty in the plastic melt. The pelletizing adopts water cooling pelletizing which is easier to operate, the final shape and appearance of granule is also good.
Product Parameters
| Model | Screw Diameter | ScrewL/D | Main Motor Power | Capacity |
|---|---|---|---|---|
| SK-85 | 85mm | 28-33:1 | 55kw | 150-200kg/h |
| SK-100 | 100mm | 28-33:1 | 75kw | 200-300kg/h |
| SK-130 | 130mm | 28-33:1 | 90kw | 300-400kg/h |
| SK-150 | 150mm | 28-33:1 | 110kw | 400-500kg/h |
| SK-160 | 160mm | 28-33:1 | 132kw | 500-600kg/h |
| SK-180 | 180mm | 28-33:1 | 160kw | 600-800kg/h |
| SK-200 | 200mm | 28-33:1 | 200kw | 800-1000kg/h |
Product Details
Welcome to contact with us for detailed specifications, machine running video and quotation
