HDPE/MPP/PPR Pipe Extrusion Line

HDPE pipe (High Density Polyethylene pipe) is a new type of pipe made from high-density polyethylene through extrusion molding process. It requires HDPE resin with high molecular weight and excellent mechanical properties as raw material. This pipe material is a substitute for traditional metal pipes and polyvinyl chloride pipes. Its working pressure range is 0.25 – 1.6 MPa. It has characteristics such as chemical corrosion resistance, low-temperature impact resistance (-60 – 60℃), light weight, good flexibility, and long service life.
It is mainly used in municipal water supply and drainage, gas transportation, water conservancy projects, and nuclear power circulating cooling water systems and etc.

HDPE Pipe with the advantage of

Low water absorption
Good chemical resistance
Good barrier properties
Despite extreme cold, tough and flexible
Light weight
Good impact strength
Excellent electrical insulation properties
Good resistance to ESCR（Environmental Stress Crack Resistance）

Process Flow

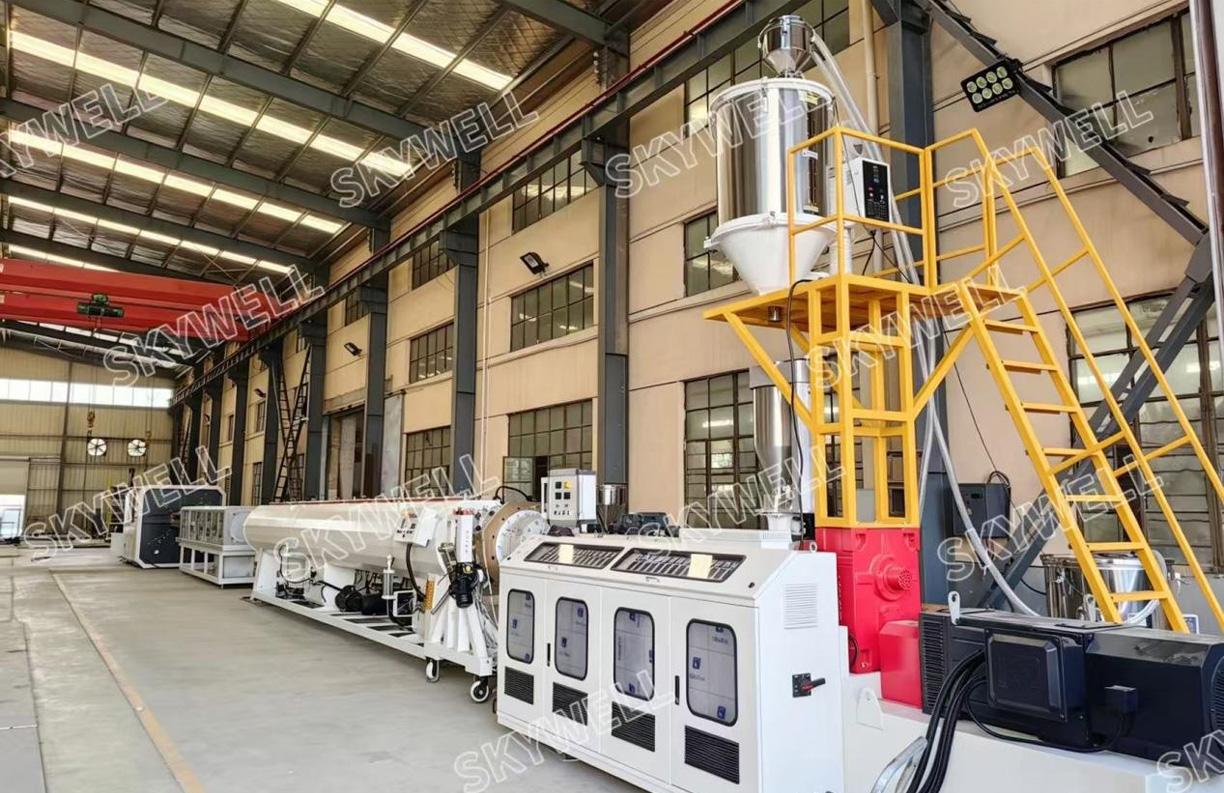

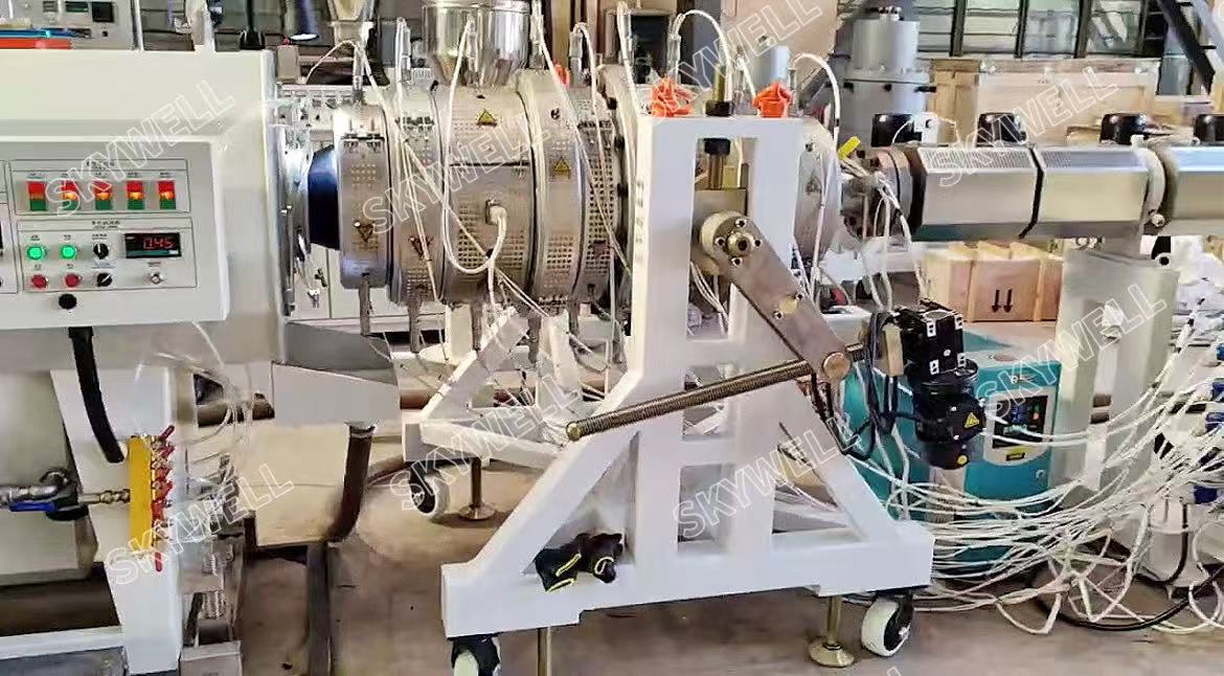

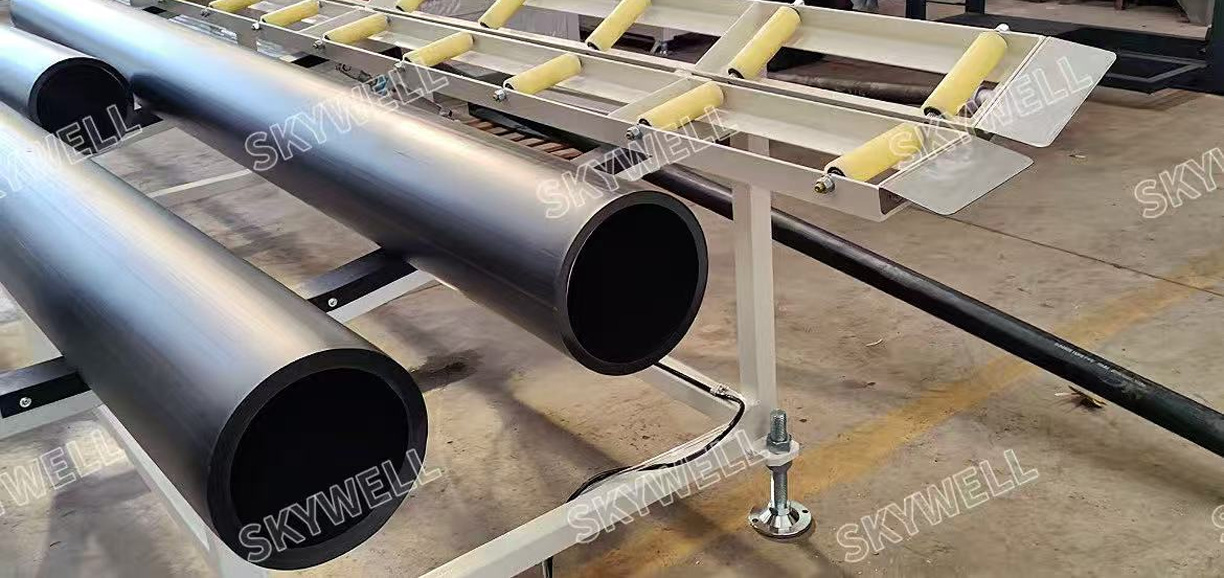

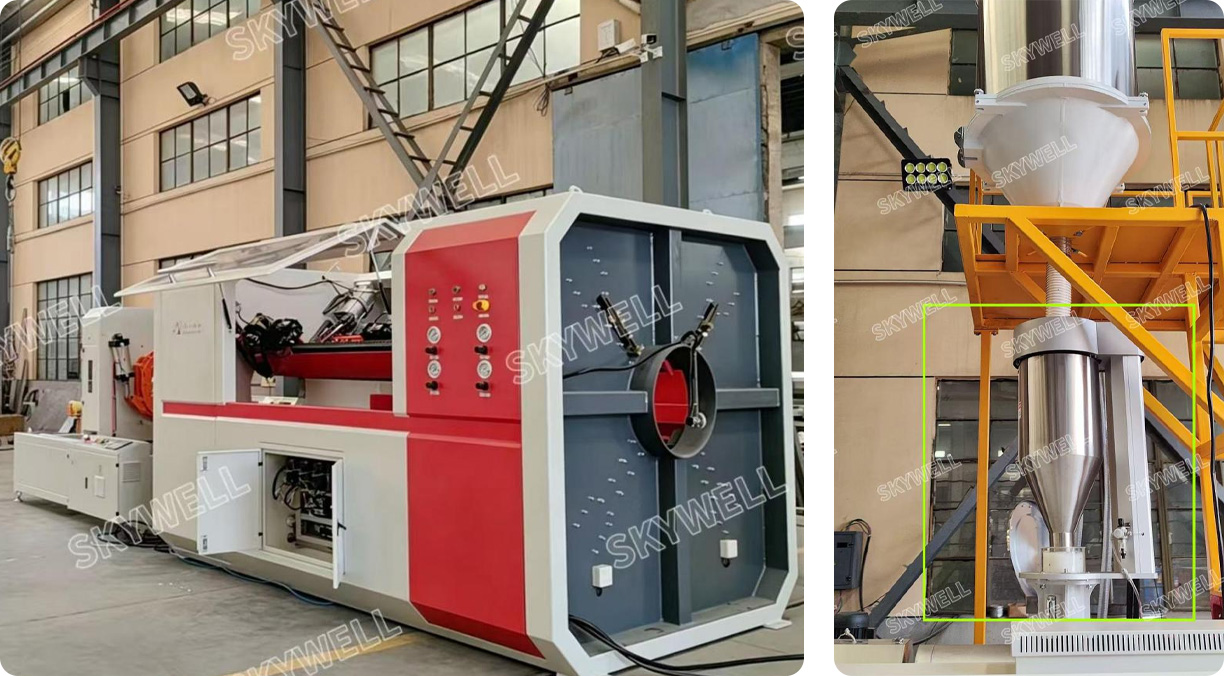

Vacuum auto loader → Hopper dryer → Single Screw Extruder → Mould → Vacuum Calibiation Tank → Spray Cooling Tank → Haul Off Machine → Dust-free Pipe Cutting Machine → Pipe Stacker （Or Pipe Winder for small dia. coil hdpe pipe）

For HDPE pipe, our machine can produce the pipe dia. Range from 16-1600mm.

Product Parameters

Model	Pipe Range	Extruder Model	Main Power (KW)	Max Output (KG/H)
PE63	16-63	65/33	55	200
PE110	20-110	65/33	55	200
PE250	50-250	60/38	110	400
PE315	90-315	75/38	160	600
PE450	110-450	75/38	185	800
PE630	250-630	90/38	250	1000
PE800	315-800	90/38	280	1200
PE1200	500-1200	120/38	355	1500
PE1600	710-1600	120/38	600	2400
