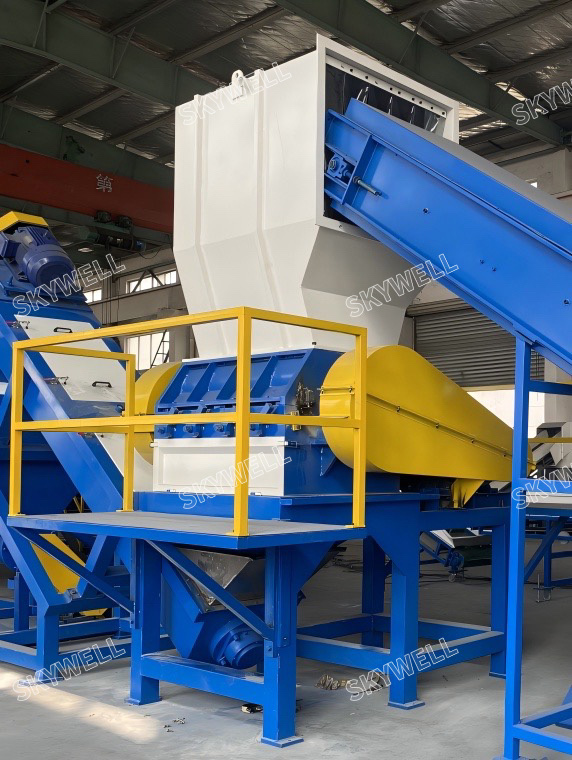

Crusher

The SKS series Plastic Crushing Machine cuts plastic film/ plastic rigid lumps and other hollow thin walled plastics into small, uniform pieces, or more popularly known as flakes.

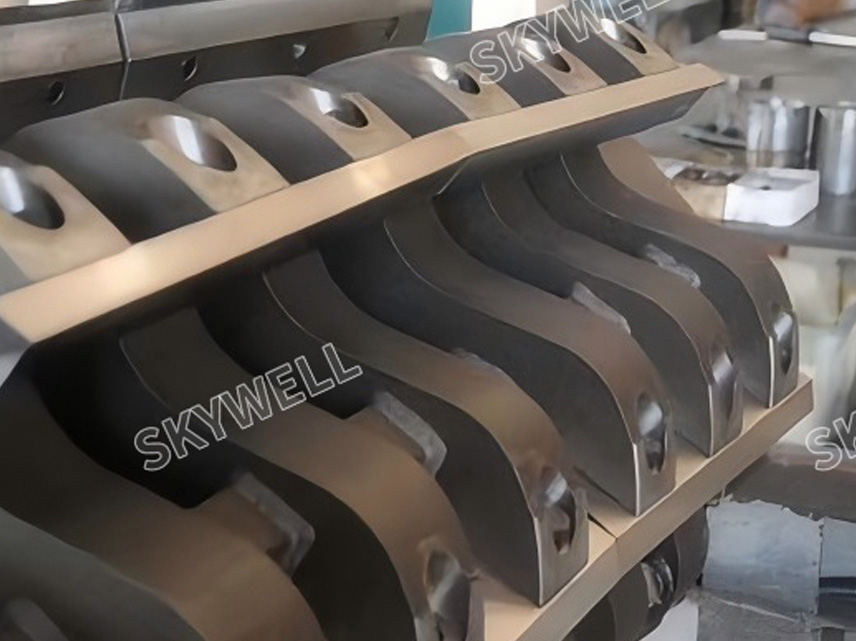

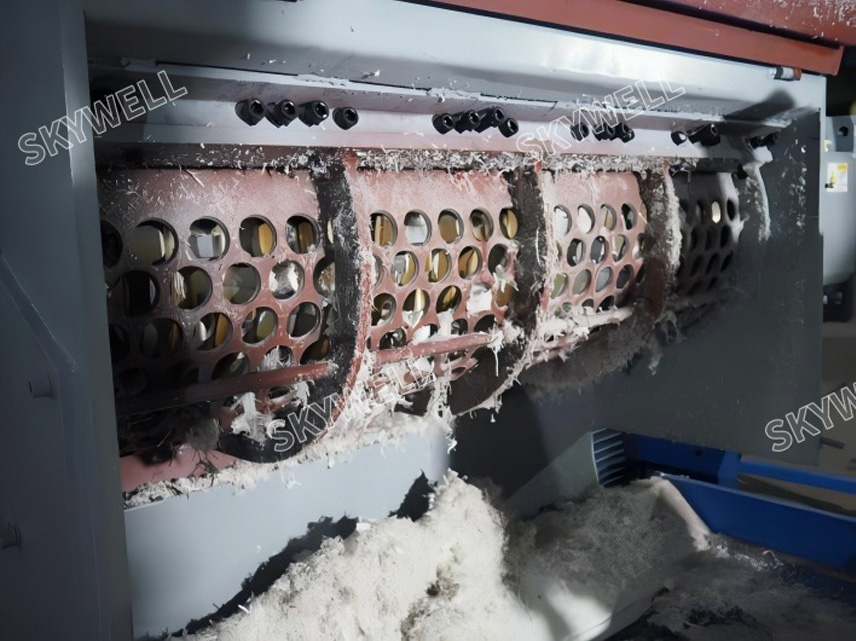

It has a centrally hinged two-piece cutting chamber with a robust welded steel construction, with the upper and lower sections of the housing meeting horizontally. Reversible stator knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re- sharpening and adjustment of the stator knives. There is a hinged screen cradle and hinged door for easy screen access.

Applications

PP PE PET ABS PVC PS PA PC and ect.
Plastic lumps, sheets, films, pipes, bottles, sprues, runners, rejects , Leather, wood branch, paper and cardboard and etc.

Product Parameters

Model	SKS500/800	SKS600/1000	SKS600/1200	SKS700/1200	SKS800/1200
Rotor Diameter	φ500	Φ600	Φ600	Φ700	Φ800
Rotor Width	800	1000	1200	1200	1200
Rotor Knives	5×2	5×2	5×2	5×2/7×2	5×2/7×2
Stator Knives	2×2	2×2	2×2	2×2	2×2
Cutting Chamber Dimension	500×800	600×1000	600×1180	700×1180	800×1180
Motor Power	37-55kw	55~75kw	90kw	110kw	132-160kw
Capacity(ton/h)	0.3-0.5	0.6-1	1-1.5	1.5-2	2-2.5
Open hopper	By electric or hydraulic control			By hydraulic control
Open screen cradle	By manual/hydraulic			By hydraulic

Product Details

Machine Features

Strong welded construction from heavy gauge steel plate.
Inclined, split cutting chamber design.
Oversized, outboard spherical rotor bearings – prevents bearing damage due to product migration.
Precision machined rotors ( V-Rotor as standard).
Manual, electric and hydraulic chamber opening machine – quick access to the cutting chamber for maintenance and machine cleaning work.
Stand Alone Electrical Control Panel
Tested, Approved and Certified to CE standards.

Welcome to contact with us for detailed specifications, machine running video and quotation
